Add 2D barcode on the badge

If you wish to have the module 'barcode on badge' please contact the eventure helpdesk.

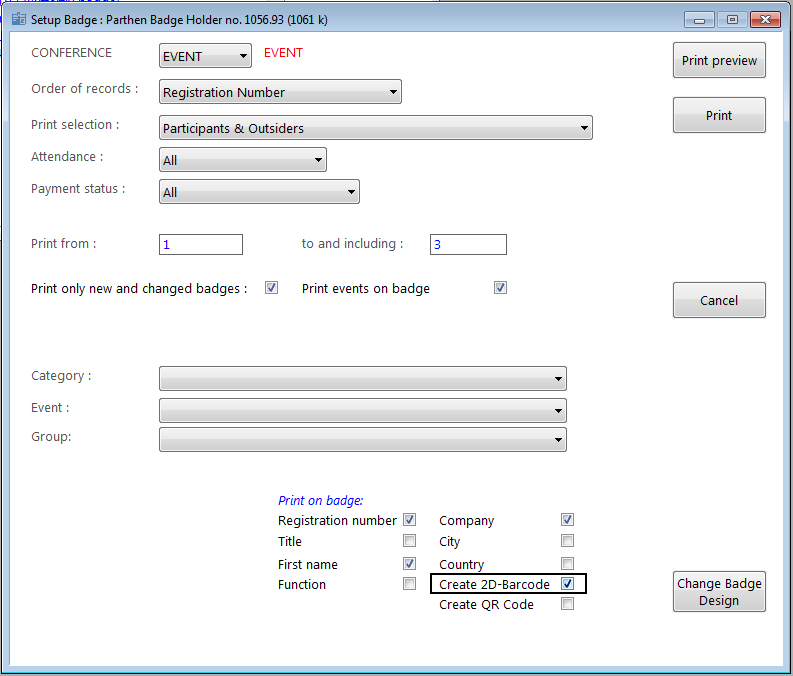

To add a 2D barcode on your badge, check the box 'Create 2D-Barcode' in the Print on badge section. After that, you can choose ‘change badge design’ in the right lower corner.

The following screen will appear:
Click on the Logo/Picture Tool and draw a square or rectangle where the code should be placed

After drawing the figure, the 'Picture style' screen will open.

Select the option: "File Name returned from an Expression" followed by the Square button (see above screenshot)

The Expression Builder screen appears.

Copy or fill in the following expression: Alltrim(Parttemp.Barcode2d)

Click OK.

The barcode2d is now added to the badge. In the badge you will see an empty square.
The 2d barcode will be printed in the empty square. You can edit the rest of the badge.

When you preview or print the badge, the barcode2d will appear on the badge.

This shows how to add the 2d barcode, but you have to follow the same procedure for the QR code. When printing the badge, you have to choose for 2d or QR
